TD-GPA-DPJ201 Parking Entrance Ticketing Machine

This self-service ticketing machine is the ultimate hassle-free solution for efficiency! Powered by a high-performance Rockchip quad-core chip, it delivers blazing-fast, lag-free responses. Its 10.1-inch sunlight-readable screen (800 cd/m²) remains clear and eye-friendly even under direct outdoor sunlight.
Supporting both card and QR code payments, it enables 0.2-second ultra-fast IC/ID card detection and 50-millisecond lightning QR code recognition, allowing zero-threshold operation. Equipped with HD intercom and one-touch fault support, it features industrial-grade ruggedness that withstands a wide temperature range from -20℃ to 70℃. The 12V safe power supply and efficient heat dissipation enable 24/7 non-stop operation. Stable and easy to maintain, it not only enhances user experience but also drastically cuts labor and O&M costs!

Screen Size 10.1 inches (large-size operation interface)
Resolution 800×1280 pixels (HD display)
CPU Rockchip RK3566, Quad-core 64-bit Cortex-A55 @ 1.8GHz
GPU ARM G52 2EE, supporting OpenGL ES, OpenCL and Vulkan
Memory LPDDR4/LPDDR4X supported
System Compatibility Android
Dimensions 45cm × 37cm × 160cm

Smart Parking Ticket Dispenser System

High-efficiency parking management with advanced hardware & intuitive operation, designed for seamless entrance/exit experience

Smart Parking Ticket Dispenser - Main Product View

Premium Parking Ticket Dispenser

Our flagship parking ticket dispenser is engineered for high-traffic parking lots, combining robust hardware with user-friendly design to streamline entrance operations.

Rockchip RK3566 quad-core CPU (1.8GHz) for fast, stable performance
10.1-inch HD touch display (800×1280) with intuitive operation interface
150mm/s high-speed thermal printing for instant ticket issuance
IP-rated outdoor design for durability in all weather conditions

Parking Ticket Dispenser - Key Components Close-up

Key Components & Design

Every detail of the dispenser is optimized for reliability and ease of use, with strategically placed components for quick access and minimal maintenance.

Dual-frequency card reader (125kHz + 13.56MHz) for VIP/monthly pass recognition
Physical "Help" button for instant on-site assistance
Anti-jam thermal printer with 79.5mm paper width compatibility
Ergonomic button layout for one-handed operation

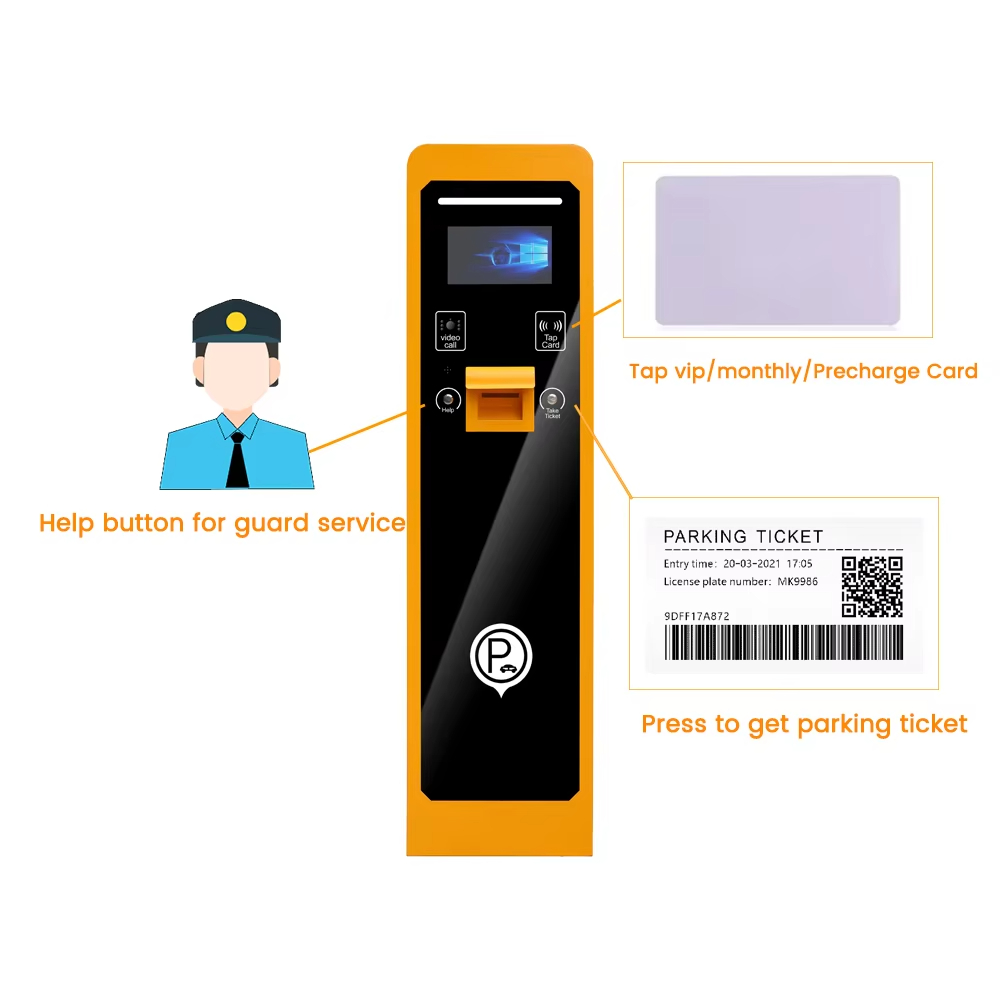

Parking Entrance System - Dispenser + Barrier Integration

Complete Entrance Solution

Seamlessly integrates with parking barriers to form a fully automated entrance system, eliminating manual intervention and reducing wait times.

Plug-and-play integration with all standard parking barriers
Automatic license plate recognition (ALPR) compatibility
Real-time data sync with central management system
Traffic flow optimization for peak-hour operations

Ticket Dispenser - User Interface & Function Buttons

Intuitive User Interface

Designed for zero-learning-curve operation, the interface guides users through ticket issuance and card verification in seconds.

One-button ticket issuance for standard parking entry
Dedicated card tap area for VIP/prepaid card users
Visual and audio feedback for successful operations
Multilingual support for diverse user demographics

Parking Management System - Backend Dashboard

Comprehensive Backend Management

The integrated management system provides full control over parking operations, from fee rules to user analytics.

Real-time parking occupancy monitoring and reporting
Customizable parking fee rules by time/vehicle type
User and staff authorization management
Financial reconciliation and tax reporting integration

Versatile Application Scenarios

Our ticket dispenser system adapts to various parking environments, delivering consistent performance across different use cases.

Commercial: Shopping malls, hotels, and office buildings
Public: Government facilities and road surveillance parking
Residential: Private villas and residential communities
Industrial: Logistics parks and corporate campuses

Parking System - Network Architecture Diagram

Robust System Architecture

The distributed architecture ensures reliable operation even in large-scale parking networks, with seamless data flow between devices.

Network/relay cable connectivity for stable data transmission
Integrated payment kiosks (cash/coin/NFC/card/mobile)
Redundant data backup to prevent information loss
Scalable design for adding more parking lots/devices

Core Advantages

High Performance

1.8GHz quad-core processor with up to 8GB memory for fast transaction processing

Fast Printing

150mm/s thermal printing speed with 8 dots/mm density for instant ticket issuance

Multi-Recognition

Dual-frequency card reader + QR code scanner for flexible access control

All-Weather Design

Outdoor-resistant construction for reliable operation in harsh environments

Full Payment Support

Integrated POS system with multiple payment methods (cash/card/mobile)

Easy Integration

Plug-and-play compatibility with existing parking barrier systems

Technical Specifications

Parameter	Specification
Processor	Rockchip RK3566, Quad-core Cortex-A55 1.8GHz
Memory	LPDDR4/4X, 2GB (max 8GB)
Display	10.1-inch LCD, 800×1280 resolution, a-Si TFT active matrix
Printing	Line thermal, 8 dots/mm, 150mm/s max speed, 79.5±0.5mm paper width
Card Reader	125kHz + 13.56MHz, compatible with MF S50/S70, TK4100/EM
QR Code Scanner	1280H×800V sensor, fast recognition
Power Supply	12V DC stable power supply
Audio	4×4W speakers with voice intercom function
