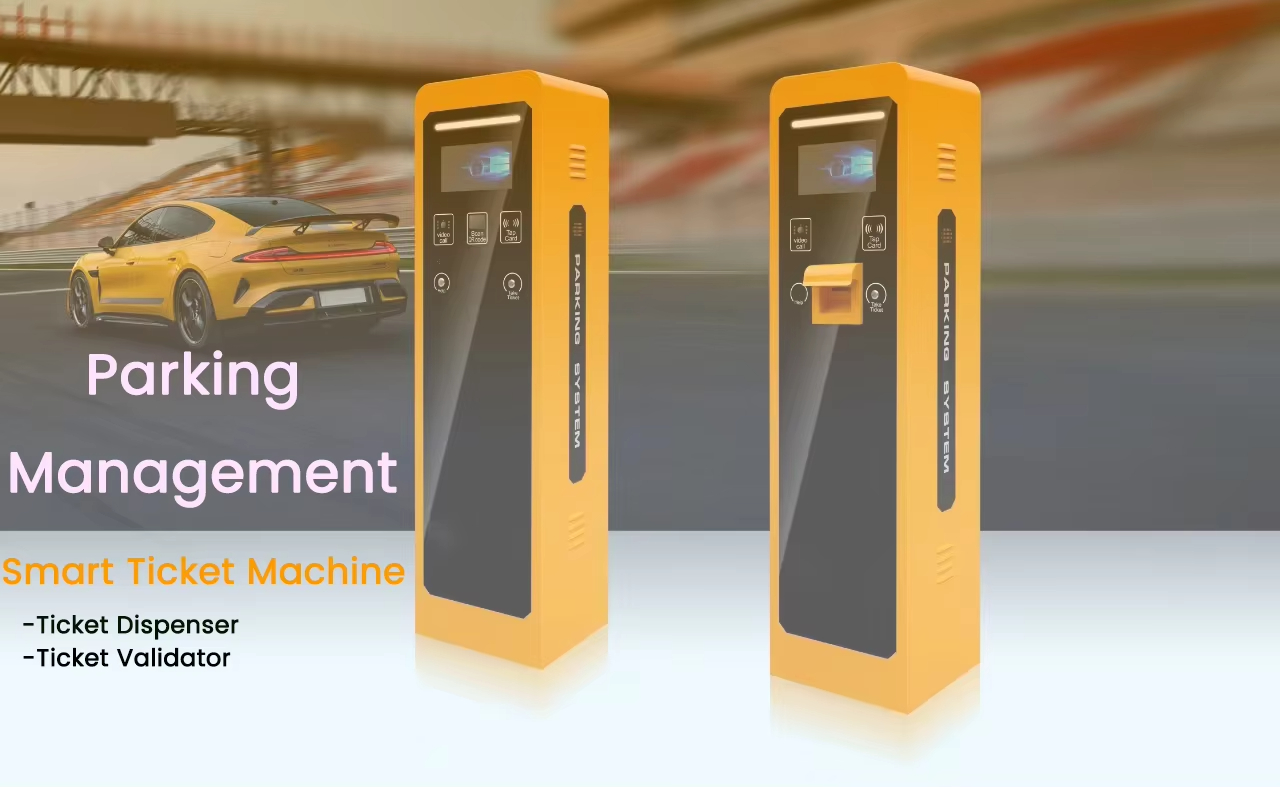

TD-GPA-DPJ201 Parking Lot Exit Ticket Machine

Powered by a high-performance Rockchip quad-core chip, this ticket machine delivers blazing-fast, smooth responses. Its embedded system ensures stable, lag-free operation, paired with a 10.1-inch sunlight-readable screen boasting 800 cd/m² high brightness. The interface stays clear and non-glaring even under direct outdoor sunlight.It supports seamless card-swiping and QR-code scanning transactions: IC/ID cards are detected in 0.2 seconds, and QR codes are recognized in 50 milliseconds. With full payment method compatibility, it enables zero-threshold operation.Equipped with 4 sets of high-fidelity speakers and a high-definition intercom module, it ensures clear, delay-free voice communication with one-touch fault support. Built with industrial-grade ruggedness, it withstands a wide temperature range from -20℃ to 70℃. The 12V safe power supply and efficient heat dissipation design enable 24/7/365 non-stop operation, slashing O&M costs significantly.Reliable and easy to maintain, it serves as your hassle-free self-service ticketing steward—elevating overall user experience while cutting labor costs substantially.

  • Screen Size 10.1 inches (large-size operation interface)
  • Resolution 800×1280 pixels (HD display)
  • Brightness 800 cd/m² (high brightness, suitable for strong light environments)
  • Interface 4-channel MIPI (stable transmission)
  • CPU Rockchip RK3566, Quad-core 64-bit Cortex-A55 @ 1.8GHz
  • GPU ARM G52 2EE, supporting OpenGL ES, OpenCL and Vulkan
  • Memory LPDDR4/LPDDR4X supported
  • System Compatibility Linux, Android
  • Communication Method Network transmission 3
  • Dimensions 45cm × 37cm × 160cm

Smart Parking Terminal
Effortless Parking Management

Designed for parking lots of all sizes, our terminal delivers 3-second fast ticket issuance & payment, all-weather durability, and seamless multi-payment compatibility—boost efficiency and cut operational costs.

  • 150mm/s high-speed thermal ticket printing
  • 125kHz/13.56MHz dual-band card & QR code recognition
  • -20℃ to 70℃ wide temperature operation
  • 10.1-inch high-brightness screen for outdoor use
Request Demo
Smart Parking Terminal Main Unit

Core Features for Parking Lots

High-Speed Printing

150mm/s thermal printing for fast parking ticket issuance, auto paper cutting for neat tickets.

Multi-Payment Recognition

≤100ms QR code scan + dual-band IC/ID card reader, support all mainstream payment methods.

Outdoor HD Screen

10.1-inch 800cd/m² high-brightness screen, clear visibility under direct sunlight.

All-Weather Durability

-20℃ to 70℃ operating temperature, stable 12V power supply for 24/7 use.

Key Components of Parking Terminal

Parking Terminal Control Board

High-Performance Control Board

Rockchip RK3566 quad-core CPU (1.8GHz) with multi-system compatibility (Windows/Linux/Android), ensures smooth operation for parking lot management software.

  • ✅ ARM G52 2EE GPU for smooth interface display
  • ✅ LPDDR4/LPDDR4X memory support
  • ✅ eMMC 5.1 high-speed storage
Parking Terminal Audio System

Clear Audio & Intercom System

4×4W high-power speakers (200Hz-20kHz frequency range) + low-latency intercom (≤300ms) for real-time assistance in parking lots.

  • ✅ ≥85dB signal-to-noise ratio for clear sound
  • ✅ Built-in microphone for two-way communication
  • ✅ Network transmission for remote assistance

Ideal for All Parking Lot Scenarios

Commercial Parking Lot

Commercial Parking Lots

Handle high traffic volume with fast payment & ticket issuance, reduce queue time for shoppers.

Office Building Parking

Office Building Parking

Support monthly pass card recognition & quick payment for employees and visitors.

Scenic Area Parking Lot

Scenic Area Parking

All-weather durability & outdoor HD screen, perfect for high-season peak traffic.

Get a Custom Solution for Your Parking Lot
