High-Performance UHF RFID Integrated Reader TD-GPA-ID300 from China Suppliers and Factory for Vehicle Access Control

The TD-GPA-ID300 is a state-of-the-art UHF RFID Integrated Reader designed to transform vehicle access control in China. With an impressive reading range of 15 meters and a robust 12dBi built-in antenna, this device outperforms many competitors in the market. Manufactured by leading suppliers in the industry, the TD-GPA-ID300 features an embedded controller and vehicle management system that eliminates the need for secondary development, enabling direct barrier gate control via its integrated relay, Furthermore, this factory-engineered solution provides seamless connectivity through TCP/IP, making it an easy addition to any security system. The device also boasts advanced offline capabilities, featuring a 100,000-user whitelist and automatic disconnected data caching. Rated IP65, the ID300 ensures reliable, unattended operation even during network interruptions, positioning it as an ideal choice for smart parking lots and toll management systems in various applications across China
  • Modle TD-GPA-ID300
  • Frequency 902~928MHz (US Standard) 865~868MHz (EU Standard)
  • Protocol ISO18000-6C (EPC GEN2)
  • RF Output Power 0dbm-33dbm (Adjustable)
  • Built-in Antenna 12dBi
  • Polarization Mode Linear Polarization
  • Read Distance 0-15 meters
  • Special Function Supports password/mask function
  • Operating Mode Active/ Trigger/ Answer mode
  • RSSI Supported
  • Standard Interface RS232, Wiegand, Relay, Power Port
  • Optional Interface TCP/IP, POE, WIFI
  • Power Supply 12V 2A
  • IP Protection Level IP65
Contact us
Product Detail

Industrial Grade UHF Reader

TD-GPA-ID300
UHF Integrated Reader

High-performance RFID solution designed for unattended parking lot management - reliable, durable, and easy to deploy. Features built-in access control and long-range identification capabilities.

TD-GPA-ID300 UHF Reader

Core Advantages

All-in-One Integration

Built-in access controller and vehicle management system, plug-and-play with no secondary development required.

15m Reading Distance

12dBi circular polarization antenna ensures reliable tag recognition up to 15 meters for smooth entry/exit.

Rich Interfaces

TCP/IP, Wiegand, RS485, and GPI interfaces for seamless connection with barriers and ground sensors.

Product Details

TD-GPA-ID300 Interface
Industrial Grade UHF Reader
Intelligent Data Management
Application Scenario

Application Scenarios

The TD-GPA-ID300 is designed for various parking management scenarios, providing efficient RFID identification.

  • Residential Parking: Unattended access control.
  • Commercial Garages: Intelligent vehicle billing.
  • Industrial Parks: Secure logistics zones.
  • Highway Toll Stations: Non-stop toll collection.

Technical Specifications

Parameter Specifications
RFID Frequency UHF (860-960MHz, configurable)
Reading Distance Up to 15 meters
Antenna 12dBi built-in circular polarization
RF Output Power 0dbm ~ 33dbm (adjustable)
Supported Protocol ISO18000-6C (EPC GEN2)
Power Supply DC 12V 2A
Protection Rating IP65 Waterproof
Capacity 100,000 whitelist entries

Built for Extremes

With an IP65 rating and ABS + Die-cast Aluminum back cover, the TD-GPA-ID300 operates flawlessly in rain, dust, and temperatures from -10°C to +55°C.

Outdoor Performance

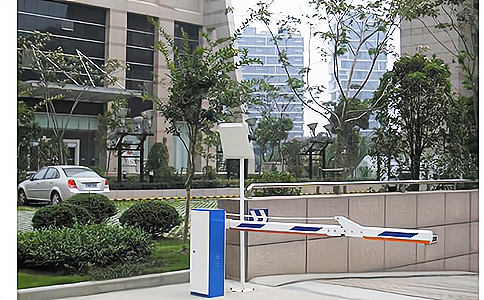

Unattended Operation

Frequently Asked Questions

What is the maximum reading range of the TD-GPA-ID300?
The reader features a 12dBi high-gain antenna that allows for a reading distance of up to 15 meters, depending on the RFID tags and the installation environment.
Does this reader require an external controller for parking barriers?
No, it has a built-in access controller. It can directly manage whitelists and trigger barrier gates through its integrated interfaces, making it a true all-in-one solution.
How many vehicles can be stored in the device's memory?
The TD-GPA-ID300 supports a whitelist capacity of up to 100,000 records, making it suitable for large residential complexes and busy commercial parking lots.
Is the device suitable for extreme outdoor weather?
Yes, the device is IP65 rated for water and dust resistance and is constructed with a die-cast aluminum back cover to withstand temperatures from -10°C to +55°C.
What communication protocols are supported for system integration?
It supports standard industrial protocols including TCP/IP, Wiegand (26/34), RS485, and GPI, ensuring compatibility with most existing security and management systems.
Can the firmware be updated after installation?
Yes, the TD-GPA-ID300 supports online firmware upgrades, allowing you to add features or optimize performance without removing the hardware.
